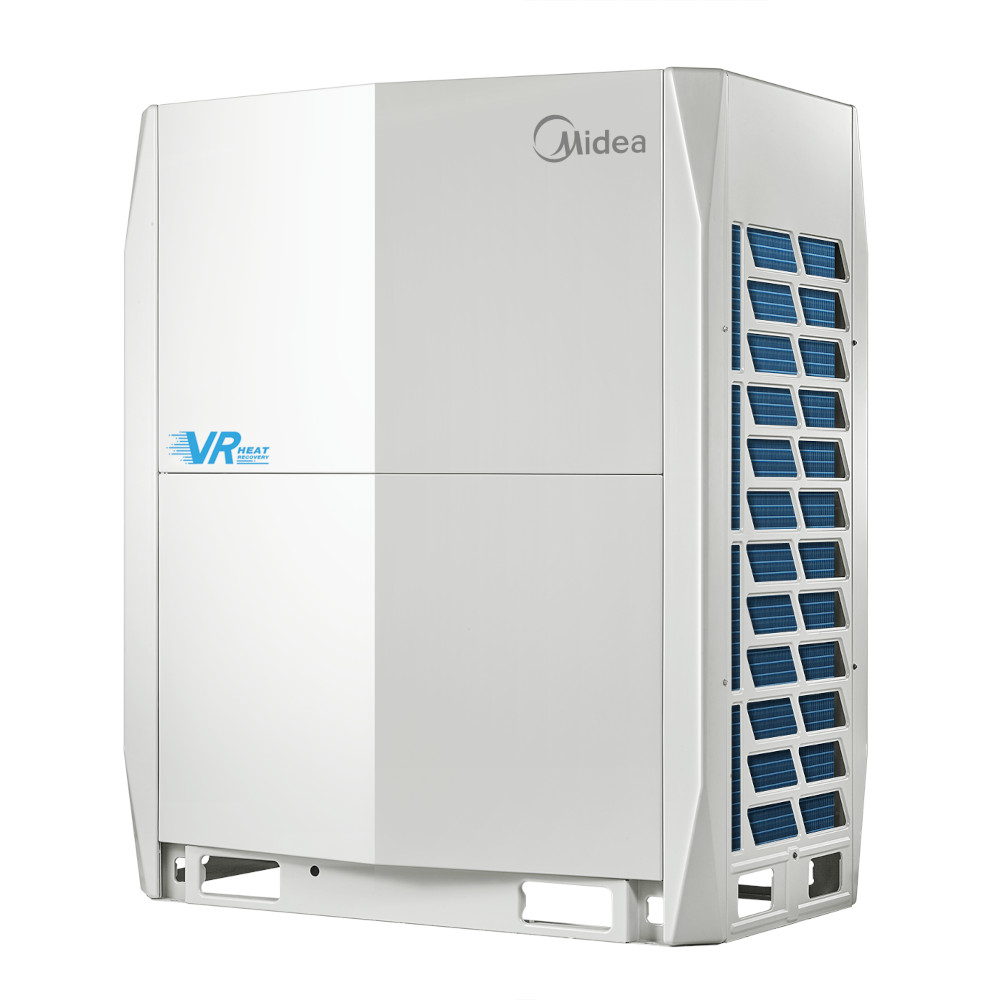

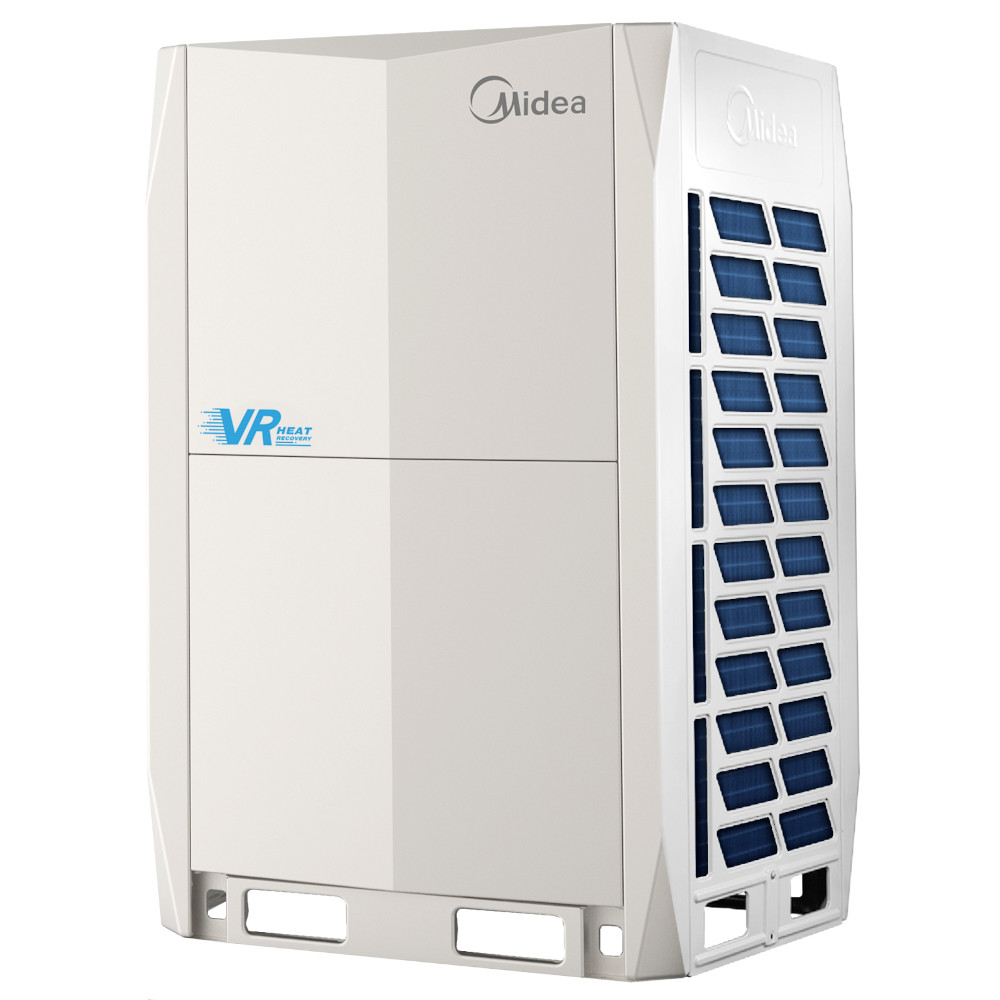

V6R Heat Recovery VRF
The Midea V6R VRF system is a highly advanced VRF solution, designed to deliver simultaneous heating, cooling, and hot water with maximum efficiency. With a wide capacity range and flexible modular design, the V6R adapts easily to complex building requirements.
Compatible with Midea's extensive range of 11 VRF indoor units, it offers complete design flexibility, making it a powerful, energy efficient HVAC solution.
Up to 10 year warranty*
Warranty extends annually when original Mi Pro installer registers maintenance.
In house tech support
We provide rapid response times to minimise end-user downtime.
Next day delivery*
Our customers enjoy fast, reliable next day delivery.
Download full product specifications. Specification varies per size.
Installers with a Midea account benefit from next day delivery across the UK, ensuring equipment arrives exactly when it’s needed to avoid delays and keep installations moving.
With same day quotes available, you can price projects quickly and respond to customers without delay. Combined with our streamlined logistics network and dedicated trade service, account holders benefit from efficient order processing, dependable lead times, and the support needed to deliver every project on schedule.
Midea offers an industry-leading warranty, designed to support reliability and performance, our warranty ensures systems are protected when installed, registered and serviced in line with our guidelines.
With clear processes and dependable support, we make it easy to manage warranties and maintain high standards across every project.
Visit our warranty page for more information.
Midea offers an industry-leading warranty, designed to support reliability and performance, our warranty ensures systems are protected when installed, registered and serviced in line with our guidelines.
With clear processes and dependable support, we make it easy to manage warranties and maintain high standards across every project.
Visit our warranty page for more information.
Intelligent Heat Recovery with Advanced Zonal Leak Detection
As the industry’s first 3-pipe heat recovery VRF with zonal leak detection, it isolates only the affected area in the event of a refrigerant leak, allowing the rest of the system to continue operating safely, it ensures minimal disruption while maintaining operation across the rest of the system.
V6RPage64
V6R Heat Recovery VRF
• Only isolates the MS zone that detects a refrigerant leak.
• Isolation reduces the risk of system refrigerant loss whilst limiting any potential risk to room occupants.
• Non effected zones will continue to operate safely.
• Dry contacts to 3rd party controls can activate alarms and enable ventilation extract fans.
• Time required to repair the cause of leak is significantly reduced.
Single module from 8HP to 18HP.
Double module from 16HP to 36HP.
Triple module from 24HP to 54HP.
Each outdoor unit is lightweight and allows total piping lengths of up to 1000 m. A maximum height difference of 110 m between outdoor and indoor units, and up to 30 m between indoor units, provides greater installation flexibility.
With a wide operating range in cooling, heating and simultaneous cooling and heating modes, the V6R can also be connected to a fresh air unit or HRV to supply continuous fresh air.
When combined with the intelligent MS Box, the system offers additional flexibility with multiple port options of 4, 6, 8, 10 or 12. Each port can connect up to five indoor units, allowing the V6R to accommodate a wide range of system designs and site requirements.
The V6R range is a multipurpose solution and can achieve space cooling/heating and domestic hot water (25°C to 80°C) simultaneously, by connecting to a Midea high temperature hydro module. The hot water can be used for domestic hot water and underfloor heating, improving room comfort.
VRF Indoor Units
The Midea VRF Wall Mounted Units are fully compatible with Midea’s range of VRF systems, with a compact, modern design and advanced airflow performance, they are ideal for a wide range of applications, providing flexible, energy-efficient comfort as part of a complete VRF system.
The Midea VRF Roundflow Cassette delivers powerful comfort through 360° airflow.
With a discreet ceiling-mounted design and advanced airflow control, it provides efficient, quiet performance while maintaining a clean, modern aesthetic.
The Midea VRF Roundflow Compact Cassette offers powerful, uniform comfort in a space-saving design. The compact form allows easy installation within standard ceiling tiles.
Designed for efficiency and discretion, it delivers quiet, reliable performance with advanced airflow control, making it an ideal solution for modern spaces requiring flexible, high performance climate control.
The VRF Ceiling & Floor Unit offers a flexible solution for spaces where traditional installations aren’t suitable.
Designed for ceiling-mounted or floor-standing installation, it delivers powerful, even airflow across the room.
The VRF Floor Standing Unit provides a versatile and discreet solution for delivering consistent comfort as part of the VRF range. Designed to suit a variety of interiors, it can be installed in multiple configurations to maximise space and flexibility.
The VRF Medium Static Pressure Ducted Unit offers a discreet, concealed solution for delivering consistent comfort. Designed for installation within ceiling voids, it provides efficient, even airflow across multiple spaces with minimal visual impact.
The VRF High Static Pressure Ducted Unit delivers powerful, long-distance airflow for larger or more complex spaces. Designed for concealed installation, it is ideal for applications requiring extended air distribution such as corridors or multi-room layouts.
