VRF Medium Static Pressure Ducted
Technical Specifications
VRF Medium Static Pressure Ducted
Download

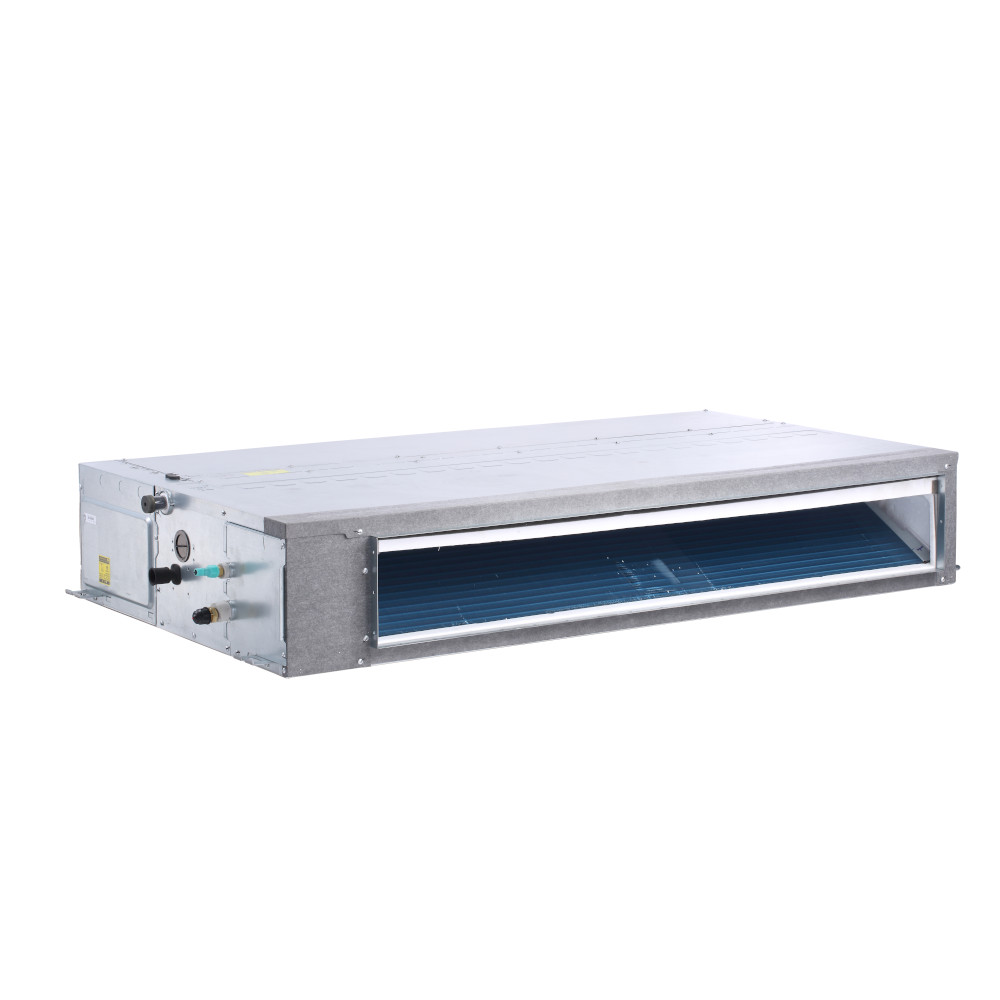

VRF Medium Static Pressure Ducted
The Medium Static Pressure Ducted unit offers a discreet, high-performance solution for delivering consistent comfort across a range of spaces. Its compact design allows easy installation within shallow ceiling voids, making it ideal for projects where space is limited.
Up to 10 year warranty*
Warranty extends annually when original Mi Pro installer registers maintenance.
In house tech support
We provide rapid response times to minimise end-user downtime.
Next day delivery*
Our customers enjoy fast, reliable next day delivery.
Download the sales leaflet for full product specification. Specification varies per size.
Installers with a Midea account benefit from next day delivery across the UK, ensuring equipment arrives exactly when it’s needed to avoid delays and keep installations moving.
With same day quotes available, you can price projects quickly and respond to customers without delay. Combined with our streamlined logistics network and dedicated trade service, account holders benefit from efficient order processing, dependable lead times, and the support needed to deliver every project on schedule.
Midea offers an industry-leading warranty, designed to support reliability and performance, our warranty ensures systems are protected when installed, registered and serviced in line with our guidelines.
With clear processes and dependable support, we make it easy to manage warranties and maintain high standards across every project.
Visit our warranty page for more information.
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
VRF Medium Static Pressure Ducted
Engineered for precision, it provides accurate temperature control and automatically adjusts airflow to suit varying conditions, ensuring optimal performance without complex setup. With ultra-quiet operation and a built-in drain pump for simplified installation, it delivers efficient, reliable comfort with minimal visual impact.
Interior,Of,A,Modern,Hotel,Bedroom
VRF Medium Static Pressure Ducted
Compact dimensions allow the unit to be easily installed in ceiling voids with a height of only 245 mm.
Set temperature can be adjusted in 0.5°C or 1°C steps, enabling precise comfort control.
Drain pump with a 1200 mm pump head is built in as standard.
An independent drive chip enables precise airflow control and output on demand. The unit automatically adapts to external static pressure from 10 to 160 Pa without installer adjustment.
Sound levels as low as 22 dB(A) create a comfortable and quiet environment.
System Controllers
The Midea WDC3-86S VRF Controller offers simple, intuitive control of your indoor unit, with easy access to on/off, operating modes, fan speed and airflow direction.
Clear indicators show system status and timer settings, while built-in timer functions and a remote receiver provide efficient, flexible operation.
The Midea WDC3-86T VRF Controller provides advanced, flexible control for up to 16 indoor units in a sleek, compact design. It offers full control of modes, fan speed, airflow direction and temperature for precise system management.
With built-in Wi-Fi, weekly scheduling, eco and silent modes, and a one-key 26°C setting, it supports energy efficiency. A backlit display, filter reminders, error reporting and auto restart ensure reliable, user-friendly operation.
The Midea WDC3-120T VRF Controller delivers advanced, centralised control with a large, easy-to-use interface, supporting up to 16 indoor units for precise multi-zone comfort.
With built-in Wi-Fi, weekly scheduling, eco and silent modes, and a one-key 26°C setting, it enhances energy efficiency. A backlit display with clock and real-time feedback, alongside filter reminders, error reporting and auto restart, ensures reliable, user-friendly operation.
The Midea RM23A Controller is a user-friendly wireless remote offering simple, flexible control of VRF indoor units, including temperature, modes and fan speed.
With a 24-hour timer, system addressing and Follow Me functionality for accurate control, plus error code display and keypad lock, it ensures reliable, easy operation.
